Crucial Dedusting Accessories of Pulse Valve Membrane

  • Crucial Dedusting Accessories of Pulse Valve Membrane
  • Crucial Dedusting Accessories of Pulse Valve Membrane
  • Crucial Dedusting Accessories of Pulse Valve Membrane
  • Crucial Dedusting Accessories of Pulse Valve Membrane

Crucial Dedusting Accessories of Pulse Valve Membrane

    Payment Type: L/C,T/T,D/P,Paypal,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW,FCA,CPT,CIP
    Min. Order: 1 Piece/Pieces
    Delivery Time: 7 Days
    Packaging: PVC bag, inner box, carton, than packed by pallet; also can be packed by color card and can be customized
    Productivity: 100000pcs per month
    Brand: OEM
    Transportation: Ocean,Land,Air
    Place of Origin: Ningbo,China
    Supply Ability: 100000pcs per month
    Certificate: CE.ISO
    Port: Ningbo,Shanghai,Tianjing

Basic Info

Model No.: MVRS-500310

Product Description

Crucial Dedusting Accessories of Pulse Valve Membrane



Pulse valve diaphragm, is the electromagnetic pulse valve air switch, electromagnetic pulse valve diaphragm back control pressure gas quickly discharged. Diaphragm front control pressure gas will lift the diaphragm, open the electromagnetic pulse valve channel into the bit on the injection, the electrical signal disappears, the electromagnetic pilot head of the spring make the moving column immediately reset closed unloading hole. Electromagnetic pulse valve diaphragm control gas pressure and

diaphragm spring force after close the channel, the electromagnetic pulse valve to stop the resistance of injection on the diaphragm hole, when the guide head moving column is raised, when gas pressure unloading, electromagnetic pulse valve

diaphragm have the effect of air resistance, when unloading closed cavity, after pressure gas is quickly to make the electromagnetic pulse valve diaphragm close the channel, stop blowing.


Because the pulse valve diaphragm is a kind of flexible mechanism which needs to open and close frequently to control the air flow and requires good flexibility.The material of the pulse valve diaphragm is directly related to the service life and effect of the pulse valve diaphragm.Therefore, the quality of pulse valve diaphragm will directly affect the work stability of dust removal system. Therefore, the use of high-quality diaphragm can reduce the cost of dust removal equipment.


Name BUHLER Type Pulse Valve Diaphragm
Model No. MVRS-500310
Application Industrial Dedusting
Hole number for mounting 3
Working temperature depands rubber materials
Working pressure 0.2Mpa-0.6Mpa
Working medium Water, Clean Air
Diaphragm working life More than 1 million cycles

Not Only Diaphragm,we can supply the corresponding pulse valve and other fittings.They have great performance in Bag Filter Dust Collector

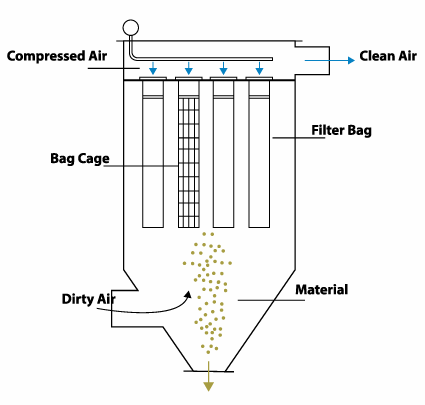

Bag Filter Dust Collector Drawings of Bag Filter System


We guarantee,every product must be seriously tested before leaving factory


Pulse Valve Diaphragm



Refer to the application of Pulse Valve Diaphragm:


Electromagnetic pulse valve diaphragm is the diaphragm in the electromagnetic pulse valve body, which is the key to its normal operation.

Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general pulse valve diaphragm has the commitment, the number of service life or actions using high-quality pulse valve diaphragm can directly reduce the cost of the use of dust removal equipment.



Working principle of Pulse Valve Diaphragm:


Pulse solenoid valve through the wire to the electromagnetic body coil into the positive pulse signal, coil generated by the working flux, make the moving core suction, open the valve. When the positive pulse signal input is stopped, the moving core is released, and the moving core returns to the initial state under the action of spring force. In addition, the valve is self-maintained, which can be maintained after the positive pulse input is stopped or the power is cut off. Only when the negative pulse signal is input can it be reset. Pulse solenoid valve working principle, is the use of electrical pulse into mechanical pulsation, make pulsating gas powerful energy into momentum, release in a short time to produce great momentum, with PLC control the pulse interval should be determined according to the rated gas pressure recovery time.


The pulse valve is controlled by the output signal of the pulse injection control instrument, and the pressure change of the two air Chambers before and after the valve makes the rubber diaphragm flexure deformation to realize the opening and closing of the pulse valve. The diameter of the rubber diaphragm determines the travel size of the rubber diaphragm and the speed of opening and closing. The larger the diameter of the diaphragm is, the larger the travel will be and the better the spray performance will be.




If you have the present demand of our products,pls contact us without any hesitation.




NINGBO BRANDO HARDWARE CO.,LTD



BRANDO is a professional manufacturer and designer of Solenoid Valve, Solenoid Valve Coil and Solenoid Valve Armature Assembly, located in Ningbo, China. And we can serve customers from various industries. Our company has been producing for more than 10 years, and cooperates with different customers such as oil & gas, chemical industry, water treatment, food & beverage, medical system and so on.


BRANDO maintains its high position in the industrial manufacturing. The advanced lathes and milling machinery are introduced, and from materials procurement to finished product and assembly, it is fully automated and controlled by computers, to improve product quality, and to continuously increase production and delivery efficiency.


BRANDO has fully adopted the ISO-9001 quality management system and introduced the most advanced precision equipment for product inspection, such as digital pressure gauges, computer applications, air leak testers, pressure testers and flow testers.


banner 2


Main Services:
1. Customized Design and Production: Brando can design and manufacture customized solenoid valves, solenoid coils and solenoid valve armature components to meet your specific needs and applications. We can provide services from small air treatment devices to large fluid systems.

2. Quality Assurance: In addition to designing and manufacturing high-quality products, Brando also provides 100% testing services for all components to ensure that they achieve the best performance under the best performance and to ensure that it runs well in your project.

3. Delivery and After-sales Service: Brando provides large inventory and on-time delivery within 5 to 10 days. We also provide unparalleled after-sales service and 1 year warranty for all products.



Product range:

1. Solenoid Coil
2. Solenoid Coil Connector
3. Solenoid Valve Armature Assembly
4. Solenoid Valve Timer
5. Brass Solenoid Valve
6. Stainless Steel Solenoid Valve
7. Plastic Solenoid Valve
8. Pneumatic Cylinder
9. Pneumatic Valve
10. Pneumatic Hose Fitting
11. Refrigeration Solenoid Valve
12. Pulse Jet Valve
13. Diaphragm Repair Kit
14. Pulse Controller
15. Air Compressor Auto Drain Valve
16. LPG CNG Injector Rail


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
